High-Performance Power for Critical Infrastructure
HELUKABEL’s MV90 cable portfolio is engineered to meet the high demands of North American medium-voltage power distribution systems. Designed for durability, thermal stability, and code compliance, these TR-XLPE insulated cables are ideal for direct burial or installation in duct, conduit, and tray systems.
Our cables meet UL 1072, CSA C68.5, AEIC CS8, and ICEA S-94-649 standards and are available in multiple configurations:
- 15 kV Aluminum | 100% or 133% Insulation Level

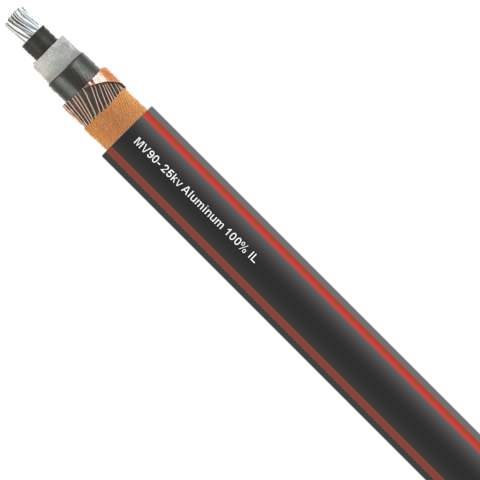

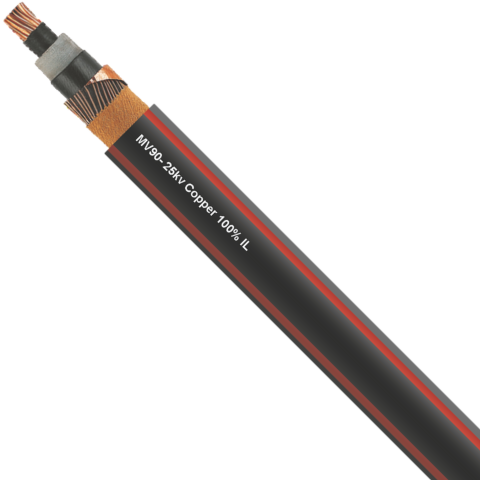

- 25 kV Copper or Aluminum | 100% or 133% Insulation Level

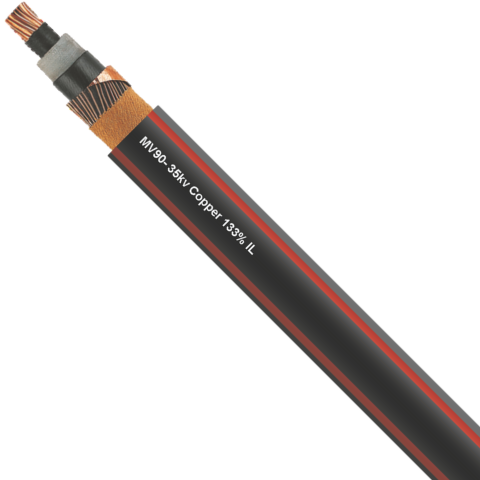

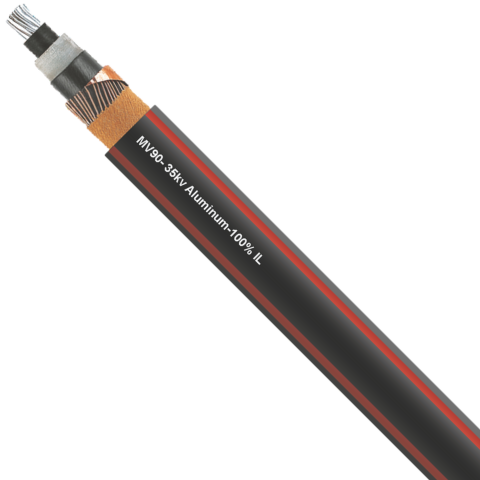

- 35 kV Copper or Aluminum | 100% or 133% Insulation Level

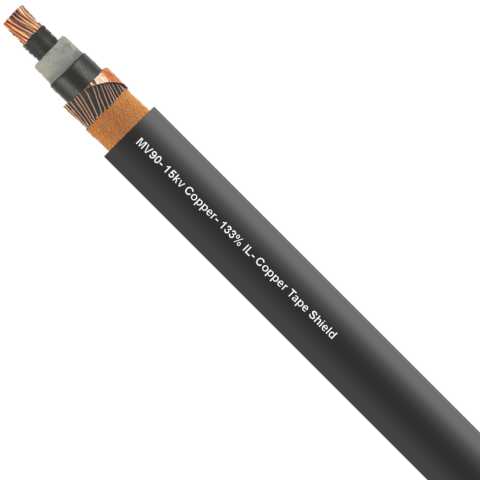

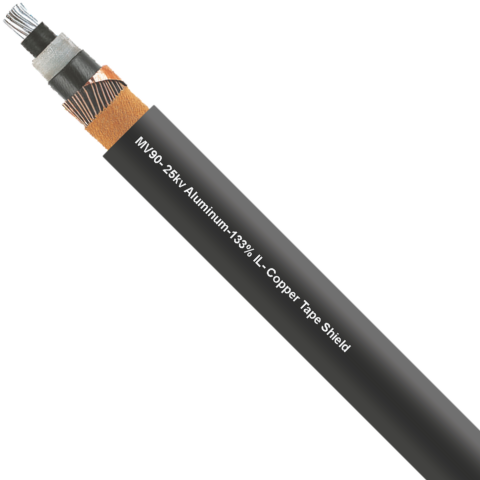

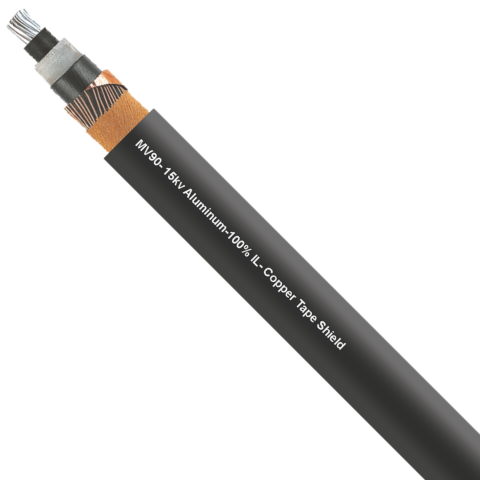

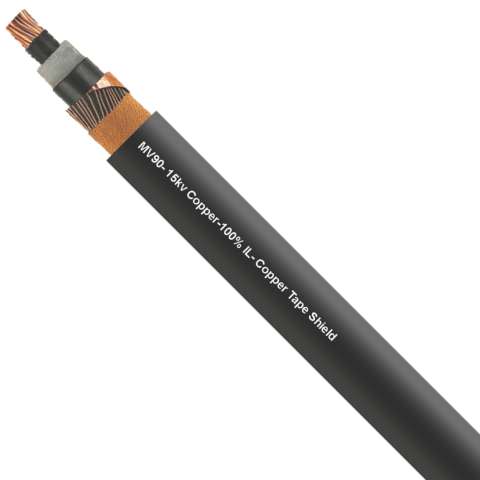

Concentric neutral or copper tape shield constructions are also available
Why HELUKABEL's MV90 Cables?
We don’t just supply cable—we engineer reliable power paths for the nation’s most demanding projects. Backed by global manufacturing expertise and local support, HELUKABEL’s MV90 cables deliver high performance, code compliance, and long-term reliability where it matters most.
Applications
MV90 cables are trusted wherever medium-voltage reliability is mission-critical:
- Data centers – primary feeders and underground utility feeds
- Renewable energy – wind and solar park distribution
- Utilities – underground primary, service entrance, transformer interconnect
- Industrial campuses – factory floor, internal grid power
- Commercial and institutional buildings – high-rise, hospitals, airports
Construction Features
Built from the inside out to withstand heat, pressure, and harsh environments, HELUKABEL's MV90 cables are engineered for durability and code compliance.
- Conductor: Compressed stranded aluminum or copper (Class B, water-blocked)
- Insulation: TR-XLPE (thermally stabilized for 194°F continuous, 482°F short circuit)
- Shielding: Concentric neutral or copper tape shield
- Jacket: LLDPE or PVC, sunlight- and moisture-resistant
- Color: Black with red stripe (optional)
Performance Highlights
Tested to North American standards, MV90 cables deliver reliable performance in direct burial, duct, and conduit installations—even under extreme conditions.
- Operating Temperature: -40°F to +194°F
- Short Circuit Rating: 482°F
- Test Voltage: Up to 84 kV (for 35 kV, 133% IL configurations)
- Approved for direct burial and UV exposure
- Available in multiple conductor sizes, including 1/0 to 1500 kcmil
